Vertical Shaft Impact Crusher

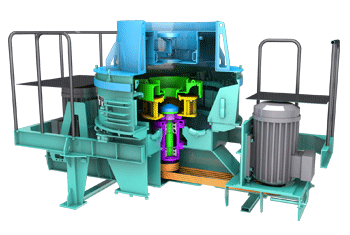

CPLS Vertical Shaft Impact Crusher

CPLS Vertical Shaft Impact Crusher is a pioneer crusher (self impact of material/impact of materials with iron plate) designed and developed by our company. It has two types of crushing cavities: stone strikes stone (CPLS) and stone strikes iron (CPLST). Stone strikes stone (CPLS) can be used in processing very hard and has a sand production capacity of over 40%. Stone strikes iron (CPLST) processes materials with medium and high degree of hardness and has a sand production capacity of over 50%.

Product Specifications

I.Features of CPLS Vertical Shaft Impact Crusher
1. Unique rotor and cavity design, high sand ratio, good particle shape, less flat and elongated particles.
2. Stone strikes Stone, low abrasion and power consumption.
3. Automatic control, hydraulic start and stop, shockproof and temperature sensing ensure the crusher safe operation.
4. Artful self-circulation of inner main flow, no dust and more green.

5. Hydraulic equipment, easy maintenance.

II. Specifications of CPLS Vertical Shaft Impact Crusher

Model	Max Feed Size (mm)	Impeller Speed (RPM)	Capacity (t/h)	Power(kW)	Weight(kg)
CPLS-550	30	2258-2600	24-60	30-45	4780
CPLS-700	35	1775-2050	55-120	55-110	7500
CPLS-850	50	1460-1720	113-240	150-264	11680
CPLS-1000	60	1242-1460	200-380	320-500	17200
CPLS-1200	60	1242-1460	300-715	500-630	20150
