Roll Crusher

C2PGG Double Roll Crusher

Product Specifications

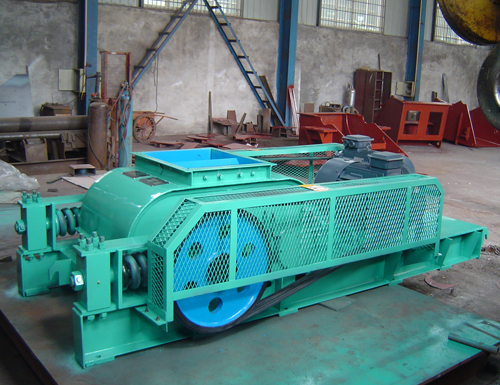

I. Introduction of Double Roll Crusher

The double roll crusher is specially designed for the fine crushing of limestone.The crusher is equiped with two rollers which rotate towards each other and materials are squeezed, grounded and cut by the shearing force of the rotating roller. When materials enter into the crushing cavity, the materials are subjected to the shearing force of the rotating roller, this causes the materials to pass through the two rollers. At this point, the mineral starts to rupture. The crushed particles move along the tangent direction of the roller, and are discharged through the bottom clearence between the two rollers. Particles that are bigger than the bottom clearance will be crushed continuously until they become small enough to be discharged. It is characterised by high rotation speed of rollers and high capacity. The double roll crusher is also suitable for mineral separation, chemical, cement, building materials industries’ medium and fine curshing of ores and stones with medium and low hardness and compressive strength of not more than 120-150Mpa.

II.Specifications of C2PGG Double Roll Crusher

Model	Roll Diameter (mm)	Roll Length (mm)	Max Feed Size(mm)				Discharge Size(mm)				Roll Speed(r/min)	Capacity (t/h)			Power (kW)	Weight (kg)
C2PGG-400X250	400	250	25-30				2—8				200	3—15			7.5x2	1300
C2PGG-610X400	610	400	35-45		45-70		2—10		10—30		60	3—16		16-49	15x2	3317
C2PGG-610X610	610	610	≤10				2—5				144	16—40			2x22	4110
C2PGG-750X500	750	500	50	55	75	95	5	10	30	50	50	8	17	49	22	6950
C2PGG-900X900	900	900	25-95				3-40				80	10-90			2x30	16800
C2PGG-1000X800	1000	800	25-30				5—10				100	35-70			2x45	23817
C2PGG-1200X800	1200	800	30				3—9				113	26-66			2x37	21015
C2PGG-1200X1000	1200	1000	40				2—12				122	15—90			2x45	46400

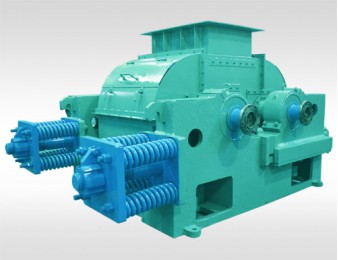

III. Specifications of C2PGC Double Toothed Roll Crusher

Model	Roll Diameter (mm)	Roll Length （mm）	Max Feed Size(mm)	Discharge Size(mm)	Capacity (t/h)	Power (kW)	Weight (kg)
C2PGC-600X750	705	750	300	50	60	22	6950
	670	750	300	75	80
	635	750	600	100	100
	600	750	600	125	125
	740	750	100	25	30
	715	750	300	40	50
C2PGC-600X900	705	915	50	25	65	55	7150
C2PGC-600X900II	705	900	300	50	65	18.5X2	6580
C2PGC-900X900	900	900	≤350	≤80	250	55	13000
C2PGC-900X900II	950	900	≤125	≤35	90-110	110	11870
C2PGC-850X1500	850	1500	300X1200X1500	100	100-150	2X22	27041
C2PGC-1200X1500	1067	1500	300	≤100	210	110	52000
C2PGC-1250X1250	1205	1250	≤600	≤35	150-200	2X75	36600
	1030	1250	≤600	≤70	350
C2PGT-1400X1400	1400	1473	≤800	≤70(80%)	300	2X132	46404
C2PGT-1600X1600	1600	1600	≤600	≤30(80%)	500	2X160	61807
