Roll Crusher

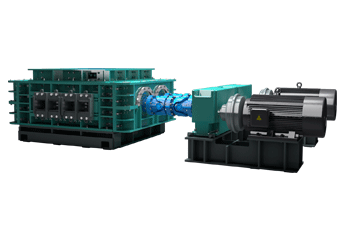

CSGP Screen Type Double Toothed Roll Crusher

The screen-type double toothed roll crusher is an innovation crusher developed by our company. It is mainly used for crushing materials with compressive strength which is no more than 150Mpa. It has higher requirements, as far as granularity is concerned, minerals like sandstone and raw coal should not be too fine.

Product Specifications

I. Features of Screen-type Double Toothed Roll Crusher
1. It can be used to crush a wide range of materials, such as coal, limestone, soft rock, hard rock and metallic ore, etc.
2. With double overload protection devices and Iron-pass protection, the crusher works reliably.
3. High adaptability makes it particularly suitable for down-hole operations and open mobile crushing.
4. More granular materials, less powder after crushing.
5. Easy to replace tooth plates and have a longer service life span.
6. Adjustable roll distance extends the scope of application.

II. Specifications of Screen-type Double Toothed Roll Crusher

CSGP Series Screen-Type Double Toothed Roll Crusher(Primary Crusher)

Model	Suitable Materials	Feed Size (mm)	Discharge Size (mm)	Capacity (t/h)	Pitch of Shaft (mm)
CSGP-625	Coal/Limestone/Shale	≤500	≤200	1800-2000	625
CSGP-750	Coal/Limestone/Shale	≤800	≤250	1000-1500	750
CSGP-850	Coal/Limestone/Shale	800-1000	250-300	1800-2200	850
CSGP-850II	Coal/Limestone/Shale	800-1000	250-300	2250-2800	850
CSGP-1150	Coal/Limestone/Shale	1000-1200	300	2700-3300	1150
CSGP-1250	Coal/Limestone/Shale	1000- 1500	250-300	3300-4000	1250
CSGP-1500	Top rock/Limestone	1500	350	3500-5000	1500

CSGPX Series Fine Screen-Type Double Toothed Roll Crusher(Secondary Crusher)

Model	Suitable Materials	Feed Size(mm)	Discharge Size(mm)	Capacity(t/h)	Pitch of Shaft(mm)
CSGPX-500	Coal/Shale	≤25≤250	≤50	500-650	500
CSGP-500I	Coal/Shale	≤250	≤50	600-800	500
CSGPX-625	Coal/Limestone/Shale	≤350	≤50 ≤50 ≤75	600-800(Coal) 400 (Limestone) 800-1000（Coal）	625
CSGPX-625I	Coal/Shale	≤350	≤50	400-600	625
CSGPX-750	Limestone	≤250	≤80	400-600	750
CSGPX-1040	Hard rock/Limestone	≤250	≤50	400 (Hard rock) 640-900 (Limestone)	1040
CSGPX-1040I	Coal	≤300	≤50	2500-3000	1040
