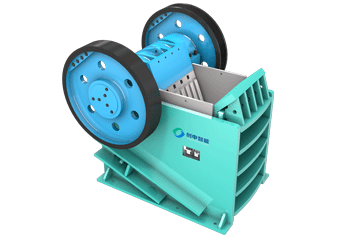

I. Introduction of CPE Jaw Crusher

The CPE jaw crusher is a new generation crusher designed in China from 1990 to 2005. It is one of the most commonly used crushers in industrial and mining production and is widely used in the primary and secondary crushing of various kinds of stones and rocks with compressive strength less than 320MPa. The crusher is equiped with a motor that drives the V-belt and a grooved wheel which is connected to the eccentric shaft. Through the movement of the eccentric shaft, the movable jaw plate moves up and down, and the materials are crushed in the crushing cavity formed by fixed jaw plate, movable jaw plate and cheek plate, and the final product is discharged at the bottom. The CPE series jaw crusher is widely applied in ore crushing, railway, highway, energy, cement, chemical, construction industries, etc.

II. Specifications of CPE Jaw Crusher

Model	Feed Opening Size (mm)	Max Feeding Size(mm)	Discharging Size (mm)	Capacity (t/h)	Eccentric Shaft Revolutions (r/m)	Power (kw)	Total Weight (excluding motor)(kg)
CPE-250x400	250x400	210	20-80	5-21	300	15	2800
CPE-400x600	400x600	340	40-100	16-64	275	30	6500
CPE-500x750	500x750	425	50-100	46-100	275	55	10300
CPE-600x900	600x900	500	65-160	48-120	250	75	15500
CPE-620x900	620x900	500	95-145	50-112	250	75	16000
CPE-750x1060	750x1060	630	80-140	115-208	250	110	28000
CPE-800x1060	800x1060	650	100-200	136-229	250	110	30000
CPE-870x1060	870x1060	670	200-260	288-384	250	110	30500
CPE-900x1200	900x1200	750	100-200	144-304	200	132	50000
CPE-1000x1200	1000x1200	850	195-265	315-342	200	132	51000
CPE-1200x1500	1200x1500	1020	150-350	300-800	180	220	82800
CPE-1500x1800	1500x1800	1200	220-350	450-1000	180	355	122000
CPEX-150x750	150x750	120	18-48	8-26	320	15	3500
CPEX-250x750	250x750	210	25-60	13-35	330	22	4900
CPEX-250x1000	250x1000	210	25-60	16-52	330	30	6500
CPEX-250x1200	250x1200	210	25-60	20-60	330	37	7700
CPEX-300x1300	300x1300	250	20-90	20-104	300	75	11000
