Impact Crusher

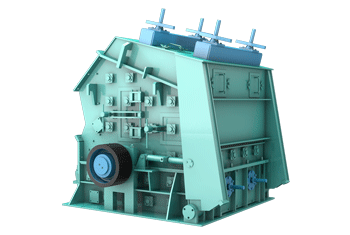

CPF Impact Crusher

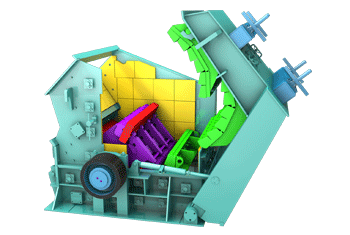

CPF impact crusher emerged in China in the 1990s. It’s emergence introduced advanced foreign technology. It adopts the force of impact as its crushing principle. During operation,  the rotor rotates at a high speed. When materials enter the blow bar crushing area above the rotor, they are thrown into the impact plates with the strike strength of blow bar for second crushing and finally discharged at the bottom. Output sizes and product shape can be changed by adjusting the clearance between impact rack and rotor.

Product Specifications

I. Introduction of CPF Impact Crusher

CPF impact crusher emerged in China in the 1990s. It’s emergence introduced advanced foreign technology. It adopts the force of impact as its crushing principle. During operation,  the rotor rotates at a high speed. When materials enter the blow bar crushing area above the rotor, they are thrown into the impact plates with the strike strength of blow bar for second crushing and finally discharged at the bottom. Output sizes and product shape can be changed by adjusting the clearance between impact rack and rotor. CPF impact crusher is suitable for crushing stones and rocks with input size less than 500mm and compressive strength less than 250~300Mpa, such as, limestone, slag, coke, coal, etc. It is not appropriate for crushing sticky materials or materials with apparent moisture more than 8%-10%. Characterized by cubic shape product size, high reduction ratio, high crushing efficiency and easy maintenance, CPF impact crusher is an ideal crushing equipment for highway construction, hydropower construction, water conservation project, and building industries, etc.


II. Specification of CPF Impact Crusher

Model

Rotor Diameter
(mm)

Feed Opening Size
(mm)

Max Feeding Size
(mm)

Discharge Size(mm)

Capacity
(t/h)

Power
(kw)

Weight
 (kg)

CPF-0807

Φ850x700

400x730

150

50

15~30

45

8130

CPF-1007

Φ1000x700

400x730

200

50

30~50

55

9500

CPF-1008

Φ1000x800

870x960

200

50

75~150

75

9500

CPF-1010

Φ1000x1050

400x1080

250

60

50~90

55

12127

CPF-1210

Φ1280x1050

400x1080

300

60

70~120

110

15340

CPF-1214

Φ1280x1400

400x1430

300

60

95~184

132

18500

CPF-1310

Φ1300x1050

490x1170

300

60

80~140

110

21200

CPF-1315

Φ1320x1500

740x1600

350

60

130~200

220

23140
