Impact Crusher

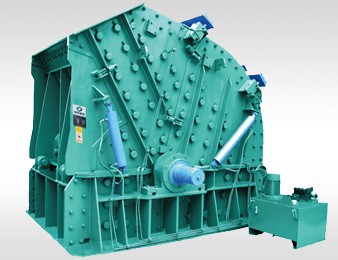

CGF Impact Crusher

Product Specifications

I. Introduction of CGF Impact Crusher

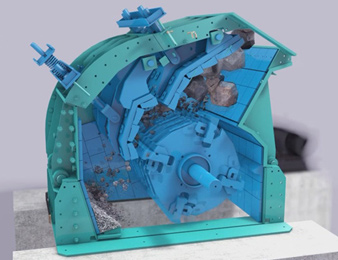

CGF impact crusher is designed and manufactured by introducing advanced technology from Europe. It is characterized by non-key joint and bigger lock torque between blow bar and rotor. In addition, the front and rear rack can be opened using the hydraulic adjusting device, which simplifies the replacement of blow bars and the adjustment of material discharge size. Big crushing chamber and feed opening, as well as increased rotational inertia of rotor contribute to greater reduction ratio and capacity. Widely applied in metallurgy, building materials, chemical industries, CGF impact crusher is suitable for primary, secondary and tertiary crushing of brittle materials with medium hardness, such as, limestone, dolomite, sandstone, graphite, halite, granite, and basalt etc. It is an ideal crushing equipment to get perfect product size in cubic shape.

II. Features of CGF Impact Crusher
1. Designed based on international advanced technologies.

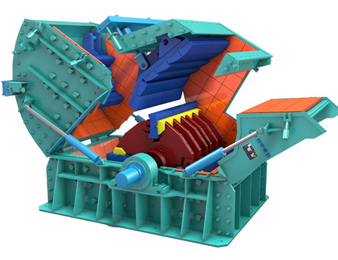

2. Front and rear racks can be opened automatically by using the hydraulic adjusting device.
3. The discharge opening size can be adjusted by using the hydraulic device.
4. Most of the liners with same dimensions can be exchanged with each other.
5. Liner is fastened by wedge plate which is easy to install and replace.
6. The third cavity adopts the concept of “stone strikes stone”.

III. Specifications of CGF Impact Crusher

Model	Roter Size (Diameter x Length)(mm)	Feed Opening Size (mm)	Max Feed Size (mm)	Discharge Size (mm)	Capacity (t/h)	Power (kW)	Weight (kg)
CGF-1010	φ1000x1000	350x1020	200	≤40	80-110	110	10000
CGF-1313	φ1280x1340	500x1360	200	≤60	160-220	200	19800
CGF-1515	φ1540x1500	504x1530	300	≤60	320-380	315	30000
CGF-1618	φ1600x1800	550x1800	350	≤60	450-580	250x2	40200
CGF-1820	φ1800x2000	650x2000	600	≤80	600-800	355x2	65000
