Hydraulic Cone Crusher

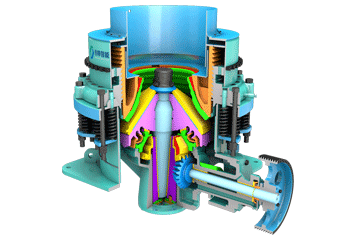

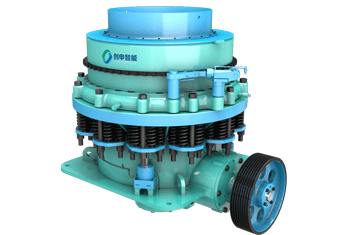

CPYS Cone Crusher

CPYS compound cone crusher uses the hydraulic lock, hydraulic adjustment, hydraulic cavity-clearing and other control devices, which greatly increased degree of automation. It is widely used in mining, metallurgy, building materials industries, and can crush all types of stones and rocks, even the hardest. CPYS cone crusher has a high capacity, low power consumption, even product granularity, and is a perfect substitute product for traditional spring cone crusher.

Product Specifications

I. Features of CPYS Cone Crusher
1. Easily replaceable diverse crushing cavities.
2. Greater crushing force, higher capacity.
3. The spring protection system has automatic iron pass function.
4. When the machine is blocked suddenly, the clear cavity jack can quickly discharge materials so as to resume production.
5. The lubrication device has a variety of flexible cooling types, applied in a wide range of areas.


II. Specifications of CPYS Cone Crusher

Model Diameter    Of Crushing Cone(mm) Adjustable Range Of Discharge Opening(mm) Feed Opening Of Min Discharge Opening (Open Side)  (mm) Max Feed Size (mm) Capacity   (t/h) Power  (kW)
Weight
(kg)
CPYS-900
Standard
CPYSB-0910(F)
900
(36'')
9~22 102 85 45~91 75 12400
CPYSB-0917 (C) 13~38 175 150 59~163 75 12200
CPYSB-0918 (EC) 25~38 178 150 118~163 75 12200
CPYS-900
Short-head
CPYSD-0904 (F) 3~13 41 35 27~90 75 13200
CPYSD-0908 (M) 3~16 76 65 27~100 75 13300
CPYSD-0910  (C) 6~19 102 85 59~129 75 13300
CPYS-1300
Standard
CPYSB-1313 (F)
1300
(51'')
13~31 137 115 109~181 160 22300
CPYSB-1321 (M) 16~38 210 178 132~253 160 22000
CPYSB-1324 (C) 19~51 241 205 172~349 160 22000
CPYSB-1325 (EC) 25~51 259 220 236~358 160 22000
CPYS-1300
Short-head
CPYSD-1306 (F) 3~16 64 54 36~163 160 21700
CPYSD-1308 (M) 6~16 89 78 82~163 160 21700
CPYSD-1310(C) 8~25 105 89 109~227 160 21800
CPYSD-1313 (EC) 16~25 133 113 209~236 160 21800
CPYS-1600
Standard
CPYSB-1620(F)
1600
(66'')
16~38 209 178 181~327 250 43400
CPYSB-1624 (M) 22~51 241 205 258~417 250 43100
CPYSB-1626 (C) 25~64 269 228 299~635 250 42800
CPYSB-1636 (EC) 38~64 368 313 431~630 250 42700
CPYS-1600
Short-head
CPYSD-1607 (F) 5~13 70 60 90~209 250 43300
CPYSD-1608 (M) 6~19 89 76 136~281 250 43200
CPYSD-1613 (C) 10~25 133 113 190~336 250 43100
CPYSD-1614 (EC) 13~25 152 129 253~336 250 42900
CPYS-2100
Standard
CPYSB-2127(F)
2100
(84'')
19~38 275 234 545~1035 400 77220
CPYSB-2133 (M) 25~51 330 281 860~1420 400 77050
CPYSB-2136 (C) 31~64 369 314 1125~1815 400 76600
CPYSB-2146 (EC) 38~64 460 391 1250~1940 400 76240
CPYS-2100
Short-head
CPYSD-2110 (F) 6~20 105 89 220~465 450 77810
CPYSD-2113 (M) 10~30 133 113 405~580 450 77750
CPYSD-2117 (C) 13~32 178 151 515~680 450 77620
CPYSD-2120 (EC) 16~38 200 170 580~745 450 77360
