Hydraulic Cone Crusher

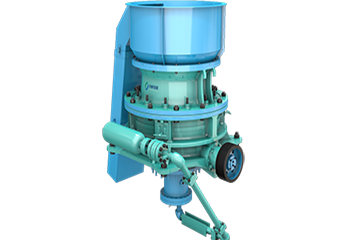

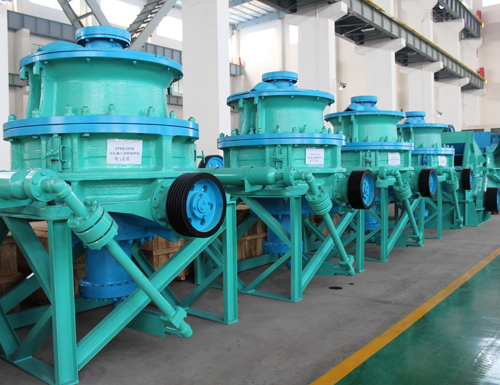

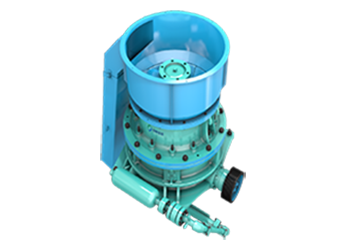

CPYQ Cone Crusher

The CPYQ single-cylinder hydraulic cone crusher is widely used in secondary, tertiary, and quaternary crushing of various stones and rocks with medium and high hardness. It is well designed with a simple structure, compact appearance, high crushing capability and easy to operate and maintain. The crafting process can be controlled automatically through the hydraulic device by adjusting the discharge opening size and overload protection. Main shaft is supported from both the top and bottom, among which, the top provides spherical support, which can endure bigger crushing force and stroke.

Product Specifications

I. Features of CPYQ Cone Crusher
1. Diverse crushing cavities are easily replaceable. Extra-coarse, coarse and medium type crushers are equipped with a feed hopper which has material level detection function; while fine type is equipped with a material distributor.
2. The displacement sensor can quickly, and accurately detect and set up the size of the discharge opening.
3. Accumulator and throttle valve can cooperate with hydraulic cylinder, automatically discharge iron to protect the main engine when iron and other materials that can't be crushed enter into the crushing chamber.
4. The concave and mantle of the cone crusher adopt filler-free method; it is easy to fasten and replace, thereby reducing the downtime.
5. The spiral bevel gear has a bigger driving torque. Operates smoothly with low noise.
6. The dust-seal air lines ensure that interior remains clean, thereby making all pieces of copper friction pair to have a longer life span.
7. The upper main shaft joints with upper frame by oscillating bearing. Spindle moves more flexible and has a longer life span.

8. The lubrication station has a variety of flexible cooling ways, and has wide application in different regions.

II. Specifications of CPYQ Cone Crusher

Model	Diameter of Crushing Cone(mm)	Adjustable Range of Discharge Opening(mm)	Feed Opening of Min Discharge Opening(open side)(mm)	Max Feed Size(mm)	Capacity (t/h)	Power (kW)	Weight (kg)
CPYQ-0908(F)	900(36")	4-12	80	65	30-50	132	10500
CPYQ-0912(M)		8-15	120	100	40-60		10300
CPYQ-0918(C)		10-25	180	150	55-80		10200
CPYQ-0925(EC)		20-40	250	210	70-180		9900
CPYQ-1212(F)	1200(47")	6-15	120	100	120-185	220	15800
CPYQ-1216(M)		10-20	160	135	160-220		15700
CPYQ-1224(C)		15-25	240	205	200-250		15400
CPYQ-1232(EC)		25-40	320	270	260-335		15100
CPYQ-1515(F)	1500(60")	10-20	150	125	230-370	315	34600
CPYQ-1525(M)		15-25	250	210	350-465		34500
CPYQ-1533(C)		25-50	330	280	470-650		34300
CPYQ-1541(EC)		50-75	410	350	650-1000		43400
CPYQ-1818(F)	1800(70")	10-25	180	150	390-610	630	59200
CPYQ-1828(M)		19-38	280	235	450-800		58800
CPYQ-1839(C)		32-55	390	330	780-1250		58400
CPYQ-1847(EC)		38-64	470	400	820-1460		58100
