Hydraulic Cone Crusher

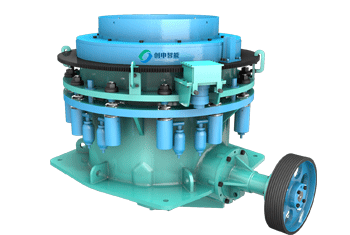

CPYH Multi-cylinder Hydraulic Cone Crusher

CPYH multi-cylinder hydraulic cone crusher uses hydraulic lock, hydraulic adjustment, hydraulic cavity-clearing and other control devices, which greatly increase the degree of automation. It is widely used in mining, metallurgy, building materials industries, etc, and can crush all types stones and rocks even the hardest. CPYH cone crusher has the following characteristics: high capacity, low power consumption, even product granularity, and is a perfect substitute product for the spring cone crusher.

Product Specifications

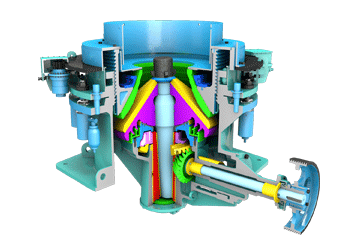

I. Features of CPYH Cone Crusher
1. Diverse crushing cavities，easy replacement.
2. The concave and mantle of cone crusher adopt filler-free method; it is easy to fasten and replace, thereby reducing the downtime.
3. The spiral bevel gear has a bigger driving torque. Operates smoothly with low noise.
4. The hydraulic cylinder provides crushing force and has functions of cavity clearing and iron-pass protection, which is safe and convenient.

5. The hydraulic motor adjusts the discharge opening, more efficiently.

II. Specifications of CPYH Cone Crusher

Model		Diameter of Crushing Cone (mm)	Adjustable Range of Discharge Opening (mm)	Feed Opening of Min Discharge Opening (open side)(mm)	Max Feed Size (mm)	Capacity (t/h)	Power (kW)	Weight (kg)
CPYH-900 Standard	CPYHB-0910(F)	900(36")	9-12	102	85	45-91	75	12400
	CPYHB-0917(C)		13-38	175	150	59-163	75	12200
	CPYHB-0918(EC)		25-38	178	150	118-163	75	12200
CPYH-900 Short-head	CPYHD-0904(F)		3-13	41	35	27-90	75	13200
	CPYHD-0908(M)		3-16	76	65	27-100	75	13300
	CPYHD-0910(C)		6-19	102	85	59-129	75	13300
CPYH-1300 Standard	CPYHB-1313(F)	1300(51")	13-31	137	115	120-199	185	22800
	CPYHB-1321(M)		16-38	210	178	189-384	185	22500
	CPYHB-1324(C)		19-51	241	205	260-394	185	22500
	CPYHB-1325(EC)		25-51	259	220	236-358	185	22400
CPYH-1300 Short-head	CPYHD-1306(F)		3-16	64	54	40-179	185	22000
	CPYHD-1308(M)		6-16	89	78	90-179	185	22000
	CPYHD-1310(C)		8-25	105	89	120-250	185	22100
	CPYHD-1313(EC)		16-25	133	113	230-260	185	22100
CPYH-1600 Standard	CPYHB-1620(F)	1600(66")	16-38	209	178	181-327	250	43600
	CPYHB-1624(M)		22-51	241	205	258-417	250	43400
	CPYHB-1626(C)		25-64	269	228	299-635	250	43400
	CPYHB-1636(EC)		38-64	368	313	431-630	250	42800
CPYH-1600 Short-head	CPYHD-1607(F)		5-13	70	60	90-209	250	43100
	CPYHD-1608(M)		6-19	89	76	136-281	250	43100
	CPYHD-1613(C)		10-25	133	113	190-336	250	42900
	CPYHD-1614(EC)		13-25	152	129	253-336	250	42800
CPYH-2100 Standard	CPYHB-2127(F)	2100(84")	19-38	275	234	545-1035	400	77220
	CPYHB-2133(M)		25-51	330	281	860-1420	400	77050
	CPYHB-2136(C)		31-64	369	314	1125-1815	400	76600
	CPYHB-2146(EC)		38-64	460	391	1250-1940	400	76240
CPYH-2100 Short-head	CPYHD-2110(F)		6-20	105	89	220-465	450	77810
	CPYHD-2113(M)		10-30	133	113	405-580	450	77750
	CPYHD-2117(C)		13-32	178	151	515-680	450	77620
	CPYHD-2120(EC)		16-38	200	170	580-745	450	77360
