Hydraulic Cone Crusher

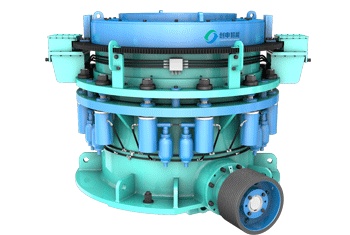

CPYG High-efficiency Multi-cylinder Hydraulic Cone Crusher

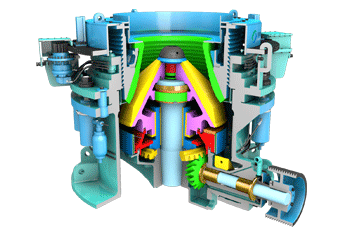

CPYG Series High-efficiency Multi-cylinder Hydraulic Cone Crusher is designed with a better crushing frequency and eccentric distance. It uses an international advanced structure to fix the main shaft, which largely increases capacity and creates more fine products. It is widely applied in mining, metallurgy, building materials and other industries, and is suitable for crushing stones and rocks with various hardness and even the hardest.

Product Specifications

I. Features of CPYG Cone Crusher
1. Diverse crushing cavities are easy to replace.
2. The concave and mantle of cone crusher adopts the filler-free method; it is easy to fasten and replace, thereby reducing the downtime.
3. The spiral bevel gear has a bigger driving torque. Operates smoothly with low noise.
4. Designed with crushing principle of lamination, high-performance crushing cavity and high swing frequency, which largely decreases the content of elongated and flaky particles in the final products.
5. Hydraulic crushing, hydraulic cavity clearing, and automatic iron release decreases downtime.
6. Hydraulic motor to adjust discharge opening, which is highly-efficient and fast.

7. The lubrication station has a variety of flexible cooling ways and is widely applicable in different regions.

II.Specifications of CPYG Cone Crusher

Model		Diameter of Crushing Cone(mm)	Adjustable Range of Discharge Opening(mm)	Feed Opening of Min Discharge Opening (open side)(mm)	Max Feed Size(mm)	Capacity (t/h)	Power (kW)	Weight (kg)
CPYGB-900 Standard	CPYGB-0913(F)	900(36")	13-38	128	109	110-245	160	11400
	CPYGB-1916(M)		16-38	156	133	130-245
	CPYGB-0921(C)		19-38	208	177	140-245
CPYGD-900 Short-head	CPYGD-0907(Z)		6-25	70	60	55-210
CPYGD-900 Short-head	CPYGD-0911(C)		10-25	114	97	80-210
CPYGB-1100 Standard	CPYGB-1115(F)	1100(45")	13-45	148	126	145-440	220	17400
	CPYGB-1119(M)		16-45	190	162	175-440
	CPYGB-1124(C)		19-45	240	204	190-440
	CPYGB-1127(EC)		25-45	267	227	220-440
CPYGD-1100 Short-head	CPYGD-1107(F)		6-25	72	61	80-280
	CPYGD-1110(M)		8-25	100	85	100-280
	CPYGD-1112(C)		10-25	123	105	110-280
CPYGB-1400 Standard	CPYGB-1416(F)	1400(55")	13-51	164	139	180-620	315	24500
	CPYGB-1425(M)		20-51	245	208	250-620
	CPYGB-1429(C)		25-51	292	248	280-620
	CPYGB-1433(EC)		30-51	333	283	300-620
CPYGD-1400 Short-head	CPYGD-1410(F)		6-25	104	88	100-370
	CPYGD-1411(M)		8-25	107	91	115-370
	CPYGD-1414(C)		10-25	143	122	130-370
CPYGB-1500 Standard	CPYGB-1518(F)	1500(60")	16-51	182	155	270-760	400	34400
	CPYGB-1525(M)		22-51	246	209	335-760
	CPYGB-l532(C)		30-51	322	274	380-760
	CPYGB-1537(EC)		38-51	372	316	435-760
CPYGD-1500 Short-head	CPYGD-1510(F)		8-25	105	89	140-450
	CPYGD-1512(M)		10-25	116	99	170-450
	CPYGD-15l5(C)		13-25	152	129	225-450
CPYGB-2000 Standard	CPYGB-2026(F)	2000(80")	16-51	264	224	370-1150	630	63000
	CPYGB-2031(M)		25-51	308	262	480-1150
	CPYGB-2034(C)		32-51	340	289	530-1150
	CPYGB-2038(EC)		38-51	375	319	580-1150
CPYGD-2000 Short-head	CPYGD-2010(F)	2000(80")	5-25	98	83	110-710
	CPYGD-2015(M)		10-25	150	128	235-710
	CPYGD-2021(C)		13-25	210	179	300-710
