Hammer Crusher

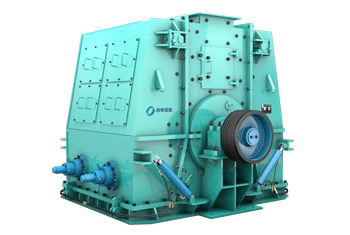

CPKW Reversible No-grate Hammer Crusher

Reversible no-grate hammer crusher is an innovative hammer crusher. It is named after its two most outstanding features of no-grate and reversible rotation of rotor. It’s advantages include: no-grate, high crushing ratio, high capacity, low over-crushing ratio, reversible rotor, longer service life span of hammerheads, and low running cost, etc. It solves the problem of wet materials block, enhances the utilization rate of hammerheads, reduces the frequency of changing hammerheads, and ensures even granularity of final product.

Product Specifications

I.Features of CPKW Hammer Crusher
1. Hammers can crush materials completely.
2. A large quantity of impact plates with high impact force and crushing frequency.
3. Reversible rotors can change the crushing direction to extend the life-span of hammers and impact plates.
4. High rotation speed and capacity; this leads to effective and up to standard crushing.
5. With features of no-grate, no-grinding and low over-crushing ratio, the crusher has high qualified final products. No-block makes it suitable for wet materials and middle & high.

II.Specifications of CPKW Hammer Crusher

Model	Rotor Diammter*Rotor Lenght(mm)	Rotor Speed (r/min)	Max Feed Size (mm)	Discharge Size(mm)	Capacity (t/h)	Power (kW)	Weight (kg)	Notes
CPKW-0908	Φ900x800	1000	100	3—10	20—65	75	6420
CPKW-1012	Φ1000x1200	985	100	3—6	40—75	132	9500
CPKW-1214II	Φ1200x1400	1000	100	3—6	60—120	220	14710
CPKW-1416	Φ1400x1600	750	100	3—6	80—160	280	28847	Hard rock
CPKW-1618	Φ1600x1800	685	100	3—6	180—200	400	32663	Hard rock
CPKW-1825	Φ1800x2500	650	100	3—6	300—350	630	59300
CPKWZ-1821	Φ1810x2100	470	250	0—30	750—850	450*2	65560
