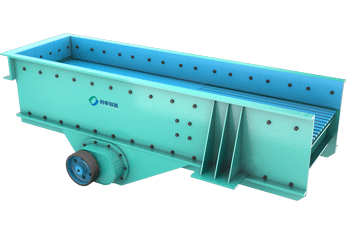

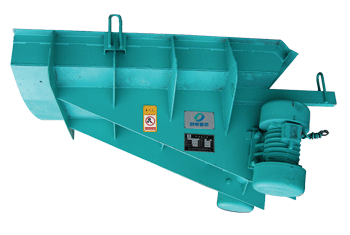

Vibrating Feeder

The vibrating feeder is the latest short linear type feeder that we design for feeding big raw materials evenly and gradually before primary coarse crusher in the crushing and screening plant. It has a simple structure with even feeding, good continuity, and adjustable excitation force. It is easy to operate and feeding capacity can be controlled at any time. With eccentric shaft and vibrating motor as its vibration source, it makes less noise and consumes less energy.

Product Specifications

I. Features of Vibrating Feeder
1. Small size, light weight, simple and compact structure.
2. Easy installation and maintenance, low operation cost.
3. High efficiency and large feeding capacity.
4. Low noise is good for improving working environment.
5. Saving energy and high power factor.
6. Stable amplitude and reliable operation. It is suitable for various materials.

7. Convenient stepless regulation of feeding capacity. Simple structure, uniform feeding, continuous performance and adjustable exciting force.

II. Specifications of Vibrating Feeder

Model	Through Size (L×W)(mm)	Max Feed Size(mm)	Capacity (t/h)	Motor Power(kW)	Double Amplitude (mm)	Weight(kg)
CZW3815	3800x950	500	96-210	11	9	4100
CZW4419	4900x1124	580	160-350	15	10	5320
CZW5224	6000x1300	600	400-560	22	10	7500
CZW5824	6000x1500	800	460-615	30	9	8666
CZW7024	6000x1800	1000	600-1000	37	9	12581
CZG100	1250x630	200	100	0.55x2	4	395
CZG200	1500x800	250	200	0.75x2	4	563
CZG300	1750x1000	300	300	1.1x2	4	791
CZG400	1673x1100	300	400	1.1x2	4	854
CZG500	2000x1250	350	500	1.5x2	4	1099
CZG750	2250x1500	500	750	2.2x2	3.5	1477
