Sand Washer and Log Washer

Product Specifications

I. Introduction of Sand Washer and Log Washer

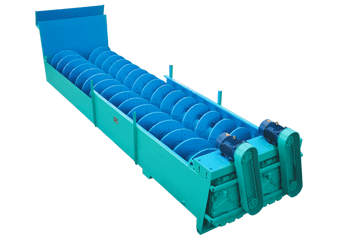

Sand Washer
The sand washer is suitable for washing, classifying and dewatering of sand used in construction, quarries, hydropower stations, concrete dam projects, pole factories, as well as “soul-rending nature sand” for casting, quartz glassworks, and pressure sand for oil well backfills. With an inclination angle of 18°, a settling pond is formed and surrounded by three-side plates at the bottom of water channel. The spiral head submerges into the settling pond, the spiral rotates continuously driven by the motor and reducer, and clean water is fed into the settling pond through the bottom perforated plate.

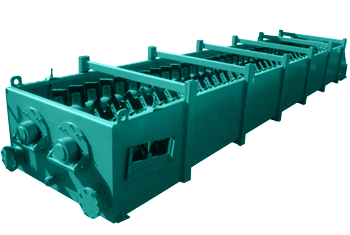

Log Washer
The log washer uses special propeller blades and high-power transmission. This makes it ideal for scrubbing difficult materials such as tough insoluble clays, conglomerates, soft stone and cemented aggregates. The max. feed size can be up to 100mm. The log washer can be mounted on fixed modular structure or on a mobile workstation. The log washer has the following features: reliability, long service life span of blades, excellent scrubbing capacity, suitable for the washing of a variety of large rocks and water separation. All log washers are equipped with heavy duty gearboxes.

II. Specification of Sand Washer and Log Washer

Model	Spiral Diameter(mm)	Selected Feed Size(mm)	Water Consumption(t/h)	Capacity (t/h)	Power (kW)	Weight(kg)
XL-915	915	〈10	10-80	100	11—15	6585
2XL-915	915	〈10	20-160	200	11x2—15x2	11555
XL-1115	1115	〈10	20-150	175	15-18.5	10710
2XL-1115	1115	〈10	40-300	350	15x2-18.5x2	16700
XL-1370	1370	〈10	20-250	250	30	14530
2XL-1370	1370	〈10	40-500	490	30x2	25610
XL-1676	1676	〈10	20-350	360	45	18570
2XL-1676	1676	〈10	40-700	725	45x2	41930
2XL-1830	1830	〈10	40-800	860	55x2	18570
XL-928	928	〈65	200-350	155	22	6200
2XL-928	928	〈65	350-500	315	22x2	10990
XL-1118	1118	〈75	250-350	225	30	9300
2XL-1118	1118	〈75	450-550	450	30x2	16350
XL-905	905	〈100	200-300	125	110	22800
XL-1120	1120	〈100	300-500	175	160	31950
