Belt Conveyor

Product Specifications

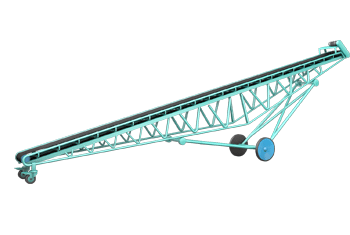

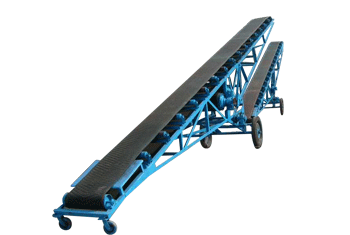

I. Introduction of Belt Conveyor

Belt conveyor has a U-steel riveting connection. It has the following advantages: low transportation cost, easy installation, high conveying capacity, simple structure, easy maintenance and standardized parts. It has been widely applied in mining, metallurgy, coal industries, etc.Belt conveyor can work singly, multiply, or form a horizontal or inclined conveying system together with other conveying equipments to meet different needs of the production line. It can work in ambient temperature ranging from -20~+40℃, and the temperature of materials to be conveyed is required to be under 50℃.

II. Specification of Belt Conveyor

Belt Width (mm)	Belt Length (m)	Power (kW)	Belt Speed (m/s)	Capacity (t/h)
400	≤12	1.5-2.2	1.3-1.6	40-80
	12-20	2.2-4
	20-30	3-7.5
500	≤12	1.5-3	1.3-1.6	78-191
	12-20	2.2-5.5
	20-30	3-7.5
650	≤12	1.5-4	1.3-2.0	131-323
	12-20	2.2-7.5
	20-30	4-11
800	≤6	1.5-3	1.3-2.0	278-546
	6-15	2.2-7.5
	15-30	4-15
1000	≤10	2.2-5.5	1.3-2.0	435-853
	12-20	4-15
	20-40	7.5-37
1200	≤10	3-7.5	1.3-2.0	655-1200
	12-20	5.5-22
	20-40	7.5-45
1400	≤10	3-11	1.3-2.0	800-1600
	12-20	5.5-22
	20-40	7.5-55
1600	≤10	3-15	1.3-2.0	1300-2000
	12-20	11-30
	20-40	15-75
