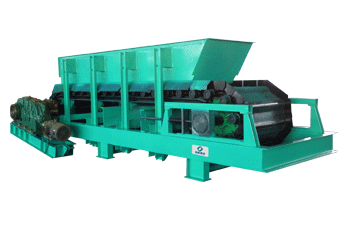

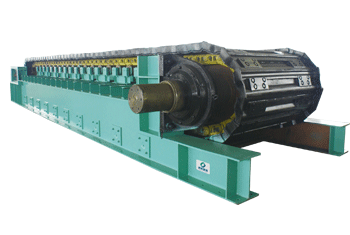

I. Introduction of Apron Feeder

The apron feeder is a stationary type accessory conveying equipment. It can be used as a hopper to feed materials into the primary crusher continuously and evenly. It can also be used for short-distance conveying, especially for those materials with high density, big size, and high abrasiveness. The apron feeder can work reliably under hard conditions like open-air, humid environment, and is widely applied in metallurgy, mining, cement, building materials industries. It has two supporting points (middle point is added when convey mixed materials), with one point put directly on the crusher . The layout is simple, and reduces basic cost. The tail part of apron feeder has a special design, which makes it suitable for rainy and humid areas. Even if wet materials accumulate at tail part, the chain will work normally and won't affect production. There is a vibration absorbing sleeper at the tail part, and middle part is supported by a number of special vibration absorbing rollers, which can reduce the impact pressure of big materials on side rollers and grooved plate. This helps to prolong the service life span. The apron feeder can be installed horizontally or with an inclination angle of max. 25°. To avoid direct impact on feeder, hopper is not allowed to be empty.

II. Specifications of Apron Feeder

Model	Slot Width(mm)	Center Distance Between Head And Tail Axles(mm)	Speed (m/s)	Feed Size (mm)	Capacity (t/h)	Power (kW)	Weight (kg)
CBW 100-6	1000	6000	0.01-0.1	≤500	80-160	11	15000
CBW 100-12	1000	12000	0.05-0.1	≤500	60-130	15	23500
CBW 120-6	1200	6000	0.01-0.1	≤600	80-160	11	16000
CBW 120-19	1200	19000	0.014-0.09	≤600	45-150	22	41000
CBW 125-6	1250	6000	0.014-0.08	≤600	45-150	11	18900
CBW 125-12	1250	12000	0.014-0.08	≤700	45-150	18.5	31800
CBW 140-8	1400	8000	0.017-0.17	≤700	100-200	22	29200
CBW 140-16	1400	16000	0.006-0.06	≤700	20-200	22	45900
CBW 150-5	1500	5000	0.014-0.08	≤700	85-288	15	18700
CBW 150-10.5	1500	10500	0.006-0.06	≤700	20-200	22	49400
CBW 160-6	1600	6000	0.017-0.17	≤800	61-610	22	25000
CBW 180-8	1800	8000	0.022-0.046	≤1500	30-320	37	53000
CBW 220-10	2200	10000	0.018-0.055	≤1500	220-680	45	80400
CBW 240-10	2400	10000	0.018-0.055	≤800	220-680	45	83400
CBZ 180-8	1800	8000	0.01-0.07	≤1000	≤500	37	59000
CBZ 180-10	1800	10000	0.01-0.07	≤1000	≤500	37	66000
CBZ 180-12	1800	12000	0.05	≤1000	360	45	67800
CBZ 220-10	2200	10000	0.01-0.07	≤1200	≤800	45	85000
CBZ 230-10	2300	10000	0.01-0.07	≤1500	≤850	55	86000
CBZ 240-10	2400	10000	0.02-0.06	≤1600	550-900	2x37	95000
CBZ 250-11.46	2500	11460	0.01-0.07	≤1800	100-1000	2x45	105000
