CGE Series Intelligent Jaw Crusher

CGE Series Intelligent Jaw Crusher are single toggle jaw crushers.It is one of the most commonly used crushers in industrial production. They are  widely applied in coarse and medium reduction of various kinds of ores and rocks with compressive strength under 350 MPa. CGE series have a crushing chamber which is composed of a movable jaw, a stationary jaw and a edge plate. Driven by electric motor, via motorpully, V-belt and sheave driving eccentric shaft that make movable jaw move in accordance with pre-selected track cause crushing the material which are in the crushing chamber and setting the crushed material by the discharge gate. CGE series jaw crushers have advanced features such as high reduction ratio, product size uniform, long service time, simple construction, outstanding reliability, easy maintenance, low energy consumption etc. Therefore, CGE series are the top priority products as the primary crushing. They are widely applied in mining, road&railway, concrete, chemical and building material industries.

---

Main advantages of CGE Series Intelligent jaw crushers

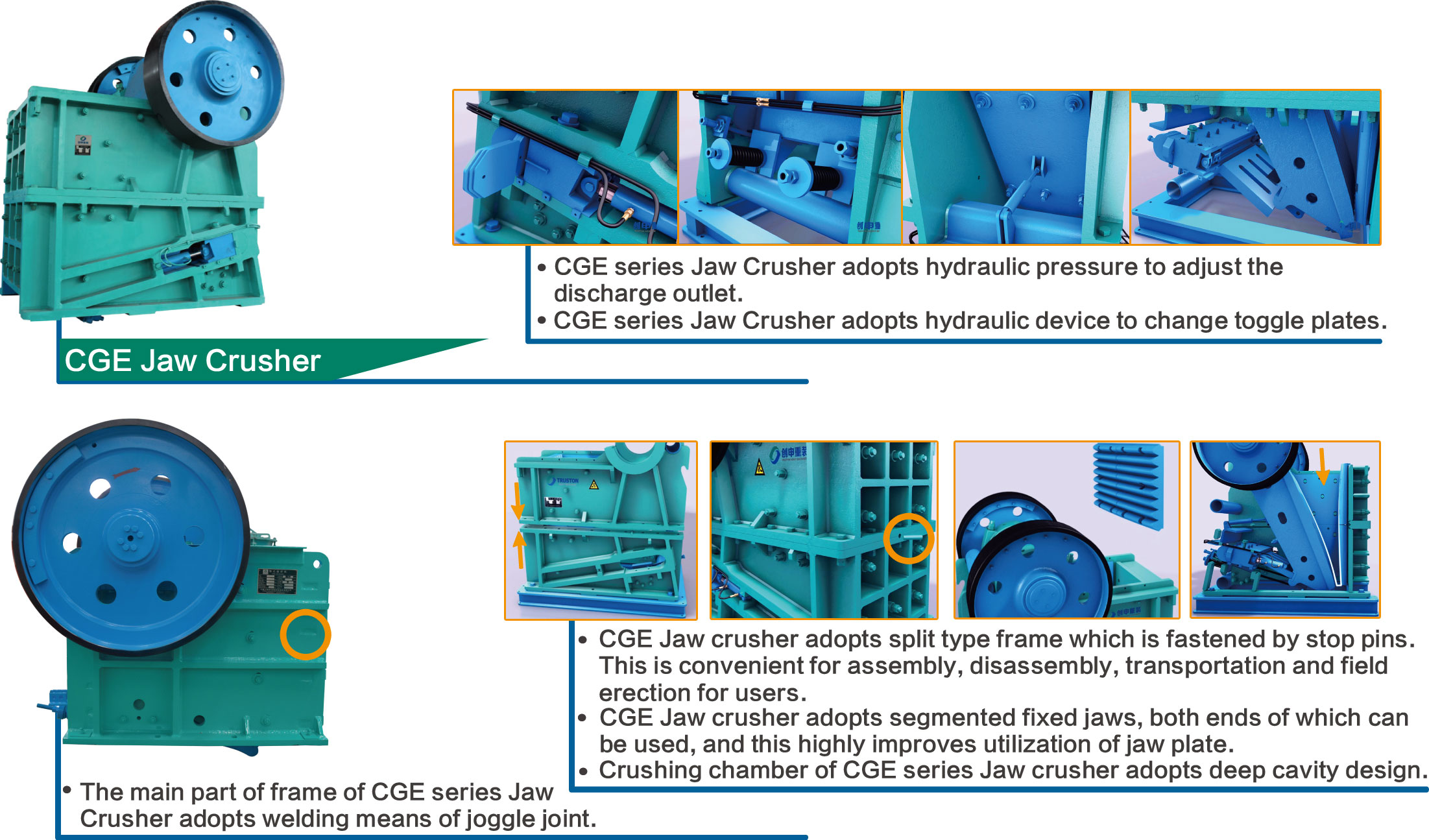

(1) Chamber of crusher is designed to have deep cavity, the main parts of the body using wedge welding and overall annealing so that frame structure can be simple, high strength and durable. The design of it ensure that the capacity and reduction ratio of the crusher.
(2) Adopted the design by digital simulation makes the perfect combination of trajectory and speed. Also making crusher get the maximum capacity while reducing losses of tooth wear plates and other wearing parts.
(3) Its structure that can be segmented for replacing tooth plate greatly improve the utilization of the tooth plate.
(4) Products adjust the discharge opening by using hydraulics; it makes operation more convenient and safe.
(5) Double adjustment seat, with arc-shape liner inside it, effectively disperse the Partial pressure to the overall surface, result in extending the life of toggle and adjustment seat.
(6) This type of model is splited up and down, fixed by the dowel pin, easy for assembly, disassembly, transportation and installation at user`s site.
(7) The U.S. technology is adopted in this model.

---

Intelligent Functions

a. Real time monitoring on the abrasion of the fixed jaw plate and moving jaw plate is executed, so that a reminder for replacement can be released in time.
b. The size of the discharge opening can be automatically detected, and adjusted by hydraulic system and tapered wedge structure to ensure the stability of product size.
c. Intelligent Control on the Feeding Quantity.
d. Real time monitoring on the bearing temperature is executed to discover abnormal conditions in time and execute timely maintenance, so that the service life of the bearings can be prolonged.
e. Real time monitoring on the current of main motor is executed, so that the equipment can be stopped automatically when iron passing, and warnings can be launched at the same time.
f.  Real time monitoring on main shaft speed is executed, so that the equipment can be stopped automatically when there is belt sliding or motor fault, and warnings can be launched at the same time.
g. The equipment has networking function.

---
