Intelligent Crushing Equipment

CPXL Intelligent Hydraulic Gyratory Crusher

The CPXL Intelligent Hydraulic Gyratory Crusher has a large dip angle crushing cavity and a longer crushing plane. Liner plates made from special materials contribute to a bigger crushing capability of the crusher and a longer service life of liner plates.

Product Specifications

The CPXL Intelligent Hydraulic Gyratory Crusher

we developed is a novel crusher which combined all performance of gyratory crushers from various companies.
This gyratory crusher has a large dip angle crushing cavity and a longer crushing plane. Liner plates made from special materials contribute to a bigger crushing capability of the crusher and a longer service life of liner plates. The extra-heavy duty rack and its integral vertical shaft assembly ensure a longer service life of the crusher and a more safe and reliable operation. The main shaft position indicator system can observe the size of discharge opening visually. Different capacities can be reached by changing eccentric bushings with different eccentricities to meet various requirements of users.

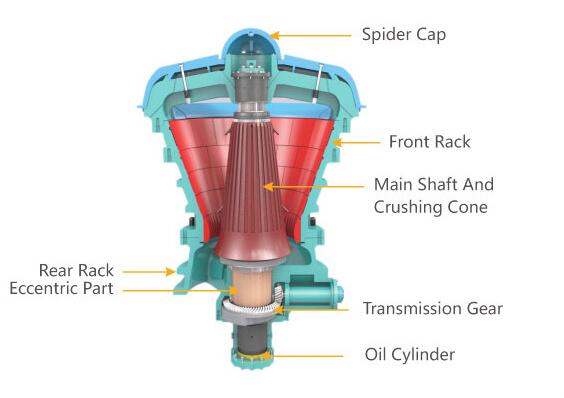

CPXL Intelligent Hydraulic Gyratory Crusher Structure Diagram

Intelligent Functions
a.Real time monitoring on the abrasion of the mantle and concave is executed, so that a reminder for replacement can be released in time.
b.The size of the discharge opening can be automatically detected, and then adjusted by the hydraulic system to ensure the stability of product size.
c.Intelligent Control on Feeding Quantity
d.Real time monitoring on the main motor current and moving cone pressure are executed, so that abnormal material like iron can be detected and discharged automatically.
e.Real-time monitoring on the hydraulic and lubricating oil level, oil temperature, oil pressure, oil flow-rate, travel of spindle etc., are executed, to realize rapid fault diagnosis so that equipment downtime can be shortened greatly and crusher can be protected as well.
f.Real time monitoring on the bearing temperature for transmission shaft is executed, to discover abnormal conditions in time and execute timely maintenance, so that the service life of the bearings can be prolonged.
g.Real time monitoring on the transmission shaft speed is executed, so that the equipment can be stopped automatically with warnings launched when there is belt sliding or motor fault.
h.The equipment has networking function.
